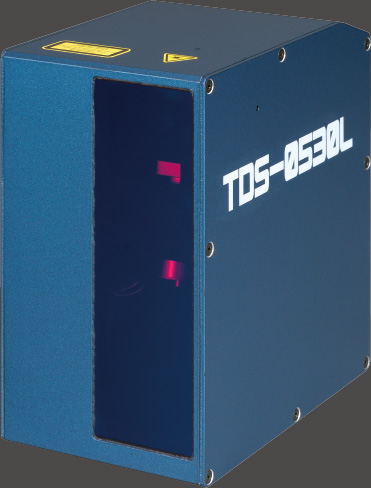

TDS-L Series

Features
Being excellent in detection sensitivity, this series provides 3D data with a wide dynamic range; TDS-L Series scanners can be used in various applications such as a robot vision system, customized measuring system, etc.
  • Light weight and easy set up.
  • Antihalation spray is not required because of its APC (automatic power control) function.
  • Highly accurate data can be obtained including stabiliy for metal surfaces or other glistering or lustrous objects.
  • As averaging process are not applied to the measurement data, edges and other minute shapes are faithfully reproduced.
  • Structural design does not allow disturbance effect of ambient light, thus, these scanners are useable on production sites or for any other outdoor applications.
Measurement Examples
  • Distance to a target building
  • 3D shapes of castings, bricks, etc.
  • 3D shapes and volumes of industrial waste
  • 3D measurement of wear of consumables and comparison with conforming items
  • 3D measurement of an item to be picked up by robot
  • 3D measurement using a welding torch attached to a robot so as to correct the welding point
